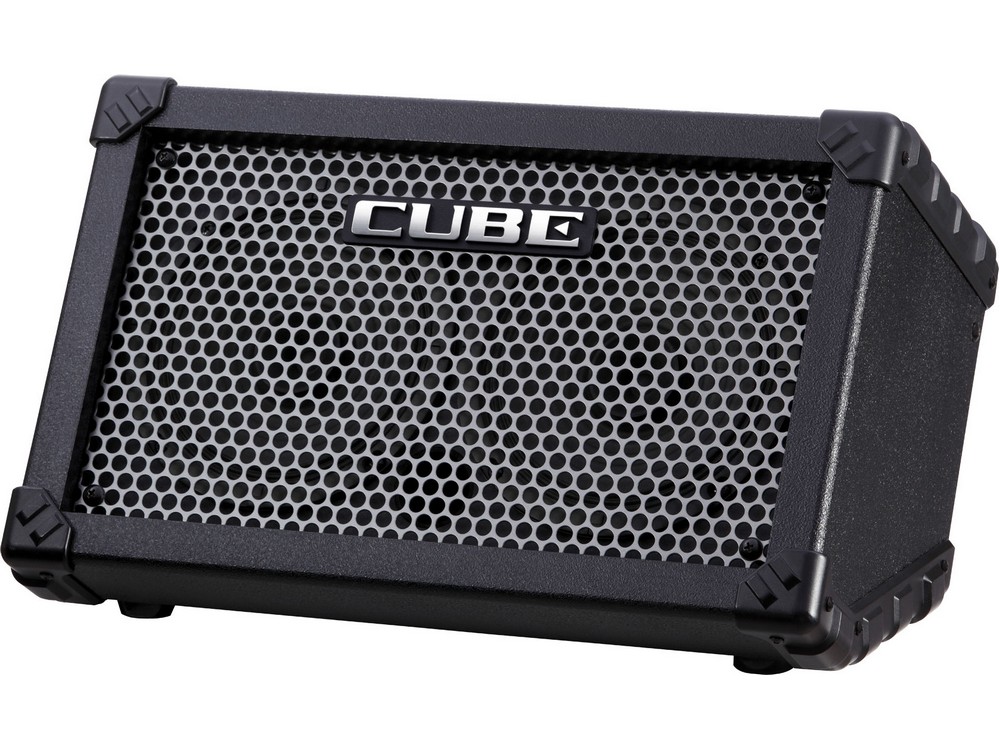

CUBE Street Battery-Powered Stereo Amplifier

The CUBE Street sounds amazing and is capable of high-volume output thanks to dual digital power amps and a pair of high-performance speakers.

And just wait until you hear the built-in effects and amp models!

Rated Power Output: 2.5 W + 2.5 W

Nominal Input Level

• (1 kHz)MIC/LINE Channel: -50 / -10 dBu
• GUITAR/INSTRUMENT Channel: -10 dBu
• STEREO AUX IN: -10 dBu
• Speakers16 cm (6.5 inches) x 2

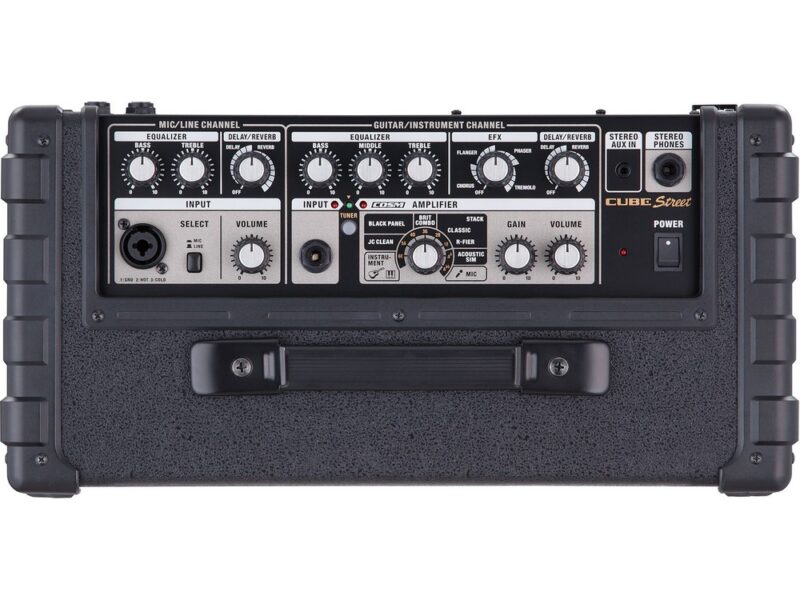

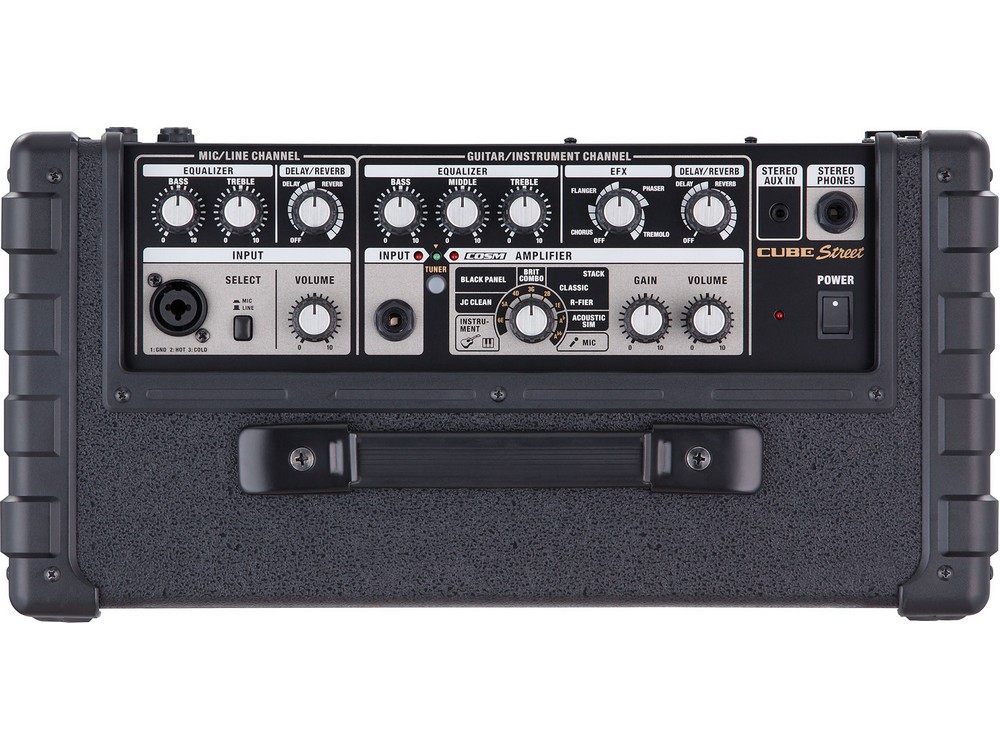

Controls

• POWER Switch
• (MIC/LINE Channel)
• SELECT Switch (MIC/LINE),
• VOLUME Knob,
• EQUALIZER Knobs (BASS, TREBLE),
• DELAY/REVERB Knob
• (GUITAR/INSTRUMENT Channel)
• TUNER Switch, TYPE Switch, GAIN Knob, VOLUME Knob, EQUALIZER Knobs
• (BASS, MIDDLE, TREBLE), EFX Knob, DELAY/REVERB Knob

Indicators

• TUNER
• POWER

Connectors

• (MIC/LINE Channel)
• Input Jacks (XLR type, 1/4″ phone type),
• Foot Switch Jack (1/4″ TRS phone type)
• (GUITAR/INSTRUMENT Channel)
• Input Jack (1/4″ phone type),
• Foot Switch Jack (1/4″ TRS phone type)
• STEREO AUX IN Jack (Stereo miniature phone type),
• PHONES Jack (Stereo 1/4″ phone type),
• AC Adaptor Jack

Power Supply

DC 9 V: AC Adaptor or Dry Battery (LR6 (AA) type)(optional) x 6

Current Draw

235 mA

Accessories

• Power Cord
• AC Adaptor (PSB-1U + AC Cord Set)
• Owner’s Manual
